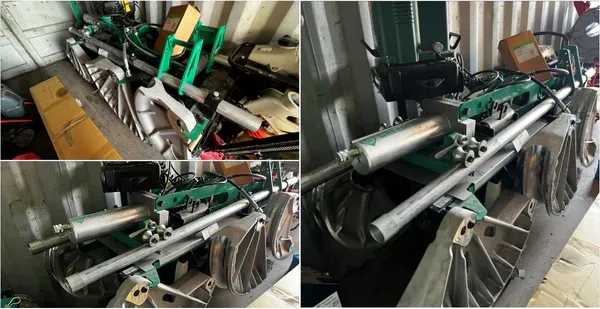

Greenlee 881GXE980MBTS Cam Track Hydraulic Bender - New
$25,875.00
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Greenlee 881GXE980MBTS Cam Track Hydraulic Bender - New
Product Details
The 881GX Cam Track® Hydraulic Bender is designed to bend 2-1/2 inch to 4 inch Rigid, IMC, and EMT conduit. It can be mounted and operated on the Greenlee Mobile Bending Table (MBT) or operated on the floor. See catalog for available configurations.
Features
- Dedicated 90˚ bending shoe groups containing a shoe, follow bar, and saddle
- Extended yoke to reduce time changing accessories
- Lighter follow bars to optimize user ergonomics
- Spring pins to reduce the amount of hitch pins used
Specifications
| Specification | Details |
|---|---|
| Capacity | 2-1/2 inch, 3 inch, 3-1/2inch, and 4 inch EMT, IMC, and Rigid conduit |
| Weight | 1,132 lbs |
| Dimensions | 80-inch x 31.7 inch x 56.8 inch (transport mode with accessories) |
| Bending Angle | 0 to 90 degrees |
| Bending Capabilities | 2-1/2 inch, 3 inches, 3-1/2 inch, and 4 inch Steel Rigid, IMC, EMT; 2-1/2 inch, 3 inches, 3-1/2 inch, and 4-inch Aluminum Rigid; 2-1/2 inch and 3-inch Stainless Steel Rigid; 2-1/2 inch, 3 inches, 3-1/2 inch, and 4-inch Schedule 40 pipe |
| Storage Box Dimensions (H x L x W) | 25 inch x 60 inch x 24 inch (63.5 cm x 152.4 cm x 60.96 cm) |
| Bender Assembly and Accessories in Storage Box Weight | 882 lbs (400 kg) |
| Bending Shoe Weights | 2-1/2 inch – 35 lb (16 kg); 3 inch – 54 lb (25 kg); 3-1/2 inch – 71 lb (32 kg); 4 inch – 87 lb (39 kg) |
| Follow Bar Weights | 2-1/2 inch – 22 lb (10 kg); 3 inch – 30 lb (14 kg); 3-1/2 inch – 47 lb (21 kg); 4 inch – 63 lb (29 kg) |
